SuryaNeer Surface Pump
Solar surface pump and controller. Mono block. Rare-earth efficiency.

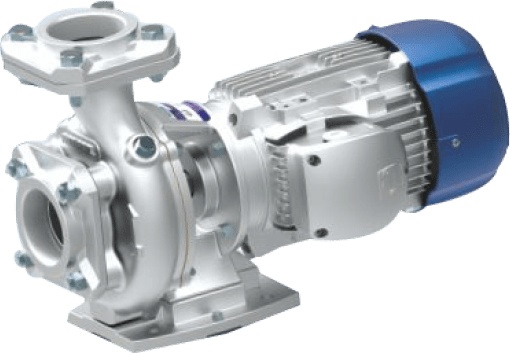

The Pump
Efficient Surface Pumping, Powered by the Sun
Saatvik DC surface pumps are the most efficient and reliable solution for surface water sources, offering mono block construction with the impeller mounted directly on the motor shaft — no couplings, no alignment losses, nothing extra to maintain.
The motor uses high-energy permanent magnets and rare-earth magnets to achieve very high efficiency, while the fully enclosed IP65 controller with integrated MPPT extracts maximum water from every hour of sunlight.
Power Range (From 3 HP)
Maximum Head
Maximum Flow Rate
Product Warranty
In the Field

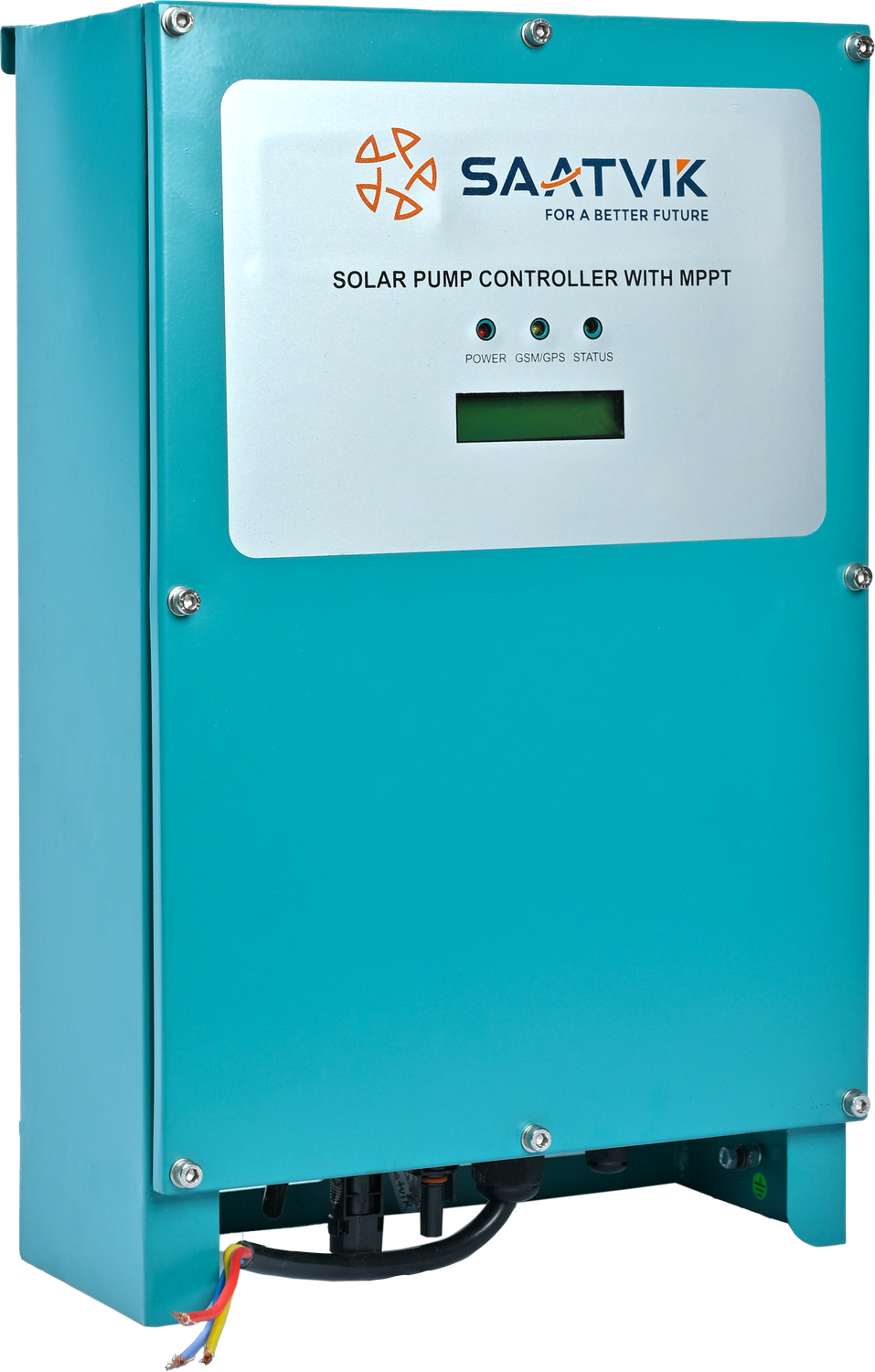

A Solar Pump Controller Built for Indian Farms
The SuryaNeer package pairs the DC surface pump with Saatvik’s own Solar Pump Controller with MPPT — a fully enclosed IP65 unit with multifault diagnosis, optional Tank Full and Source Empty sensors, and dry-run, reverse-polarity, under-voltage and short-circuit protection. Powered entirely by the sun, it delivers dependable daytime water with zero fuel and zero electricity bills.
Why SuryaNeer
Key Features of SuryaNeer
Mono Block Construction
Impeller mounted directly on the motor shaft eliminates couplings and alignment losses — a compact, efficient and reliable surface pumping unit.
Rare-Earth PM Motor
High-energy permanent magnets and rare-earth magnets in the BLDC motor achieve very high efficiency, converting more of every watt of solar power into water.
Integrated MPPT Controller
Built-in Maximum Power Point Tracking continuously matches the pump load to available solar irradiance for maximum daily water output.
IP65 Controller, IEC Tested
Fully enclosed IP65 controller tested to IEC 60068-2-6, 60068-2-2 and 60068-2-30 for environment and IEC 61683:1999 for efficiency, per IS 16221 Part-2.
Auto Start / Stop Sensors
Optional Tank Full and Source Empty sensors automate operation, with multifault diagnosis indications and protection against dry run, reverse polarity, under voltage and short circuit.
Remote Monitoring (RMS)
An integrated Remote Monitoring System can switch the pumpset ON/OFF remotely and track all parameters from a mobile app or web browser.
Applications
Where SuryaNeer Delivers

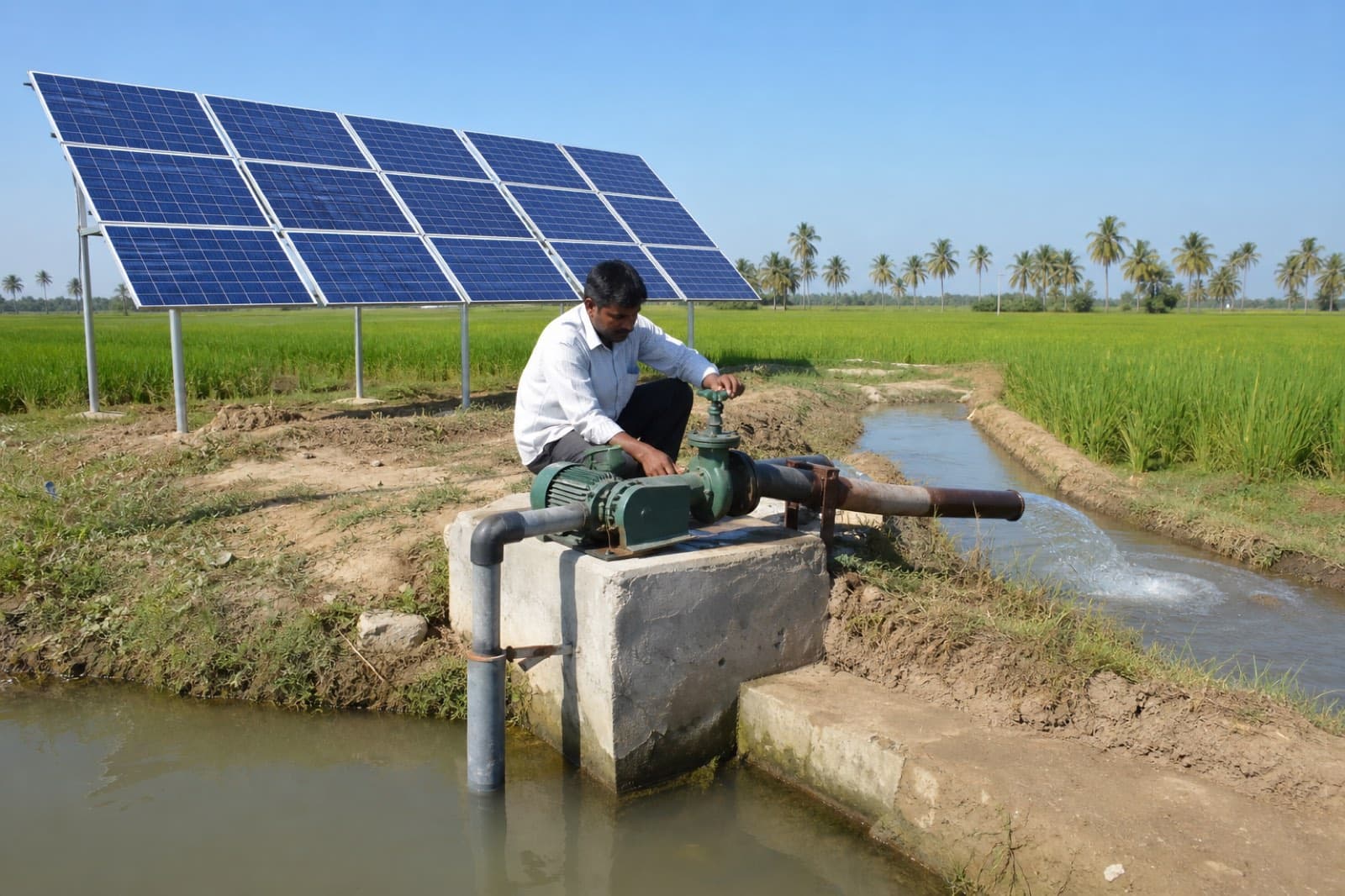

Agriculture & Irrigation
Draw from canals, ponds and open wells to feed drip, sprinkler and flood irrigation without diesel or grid power. SuryaNeer's high-efficiency permanent-magnet motor delivers dependable daytime flow exactly when crops need it, with MPPT squeezing maximum water from every hour of sunshine.

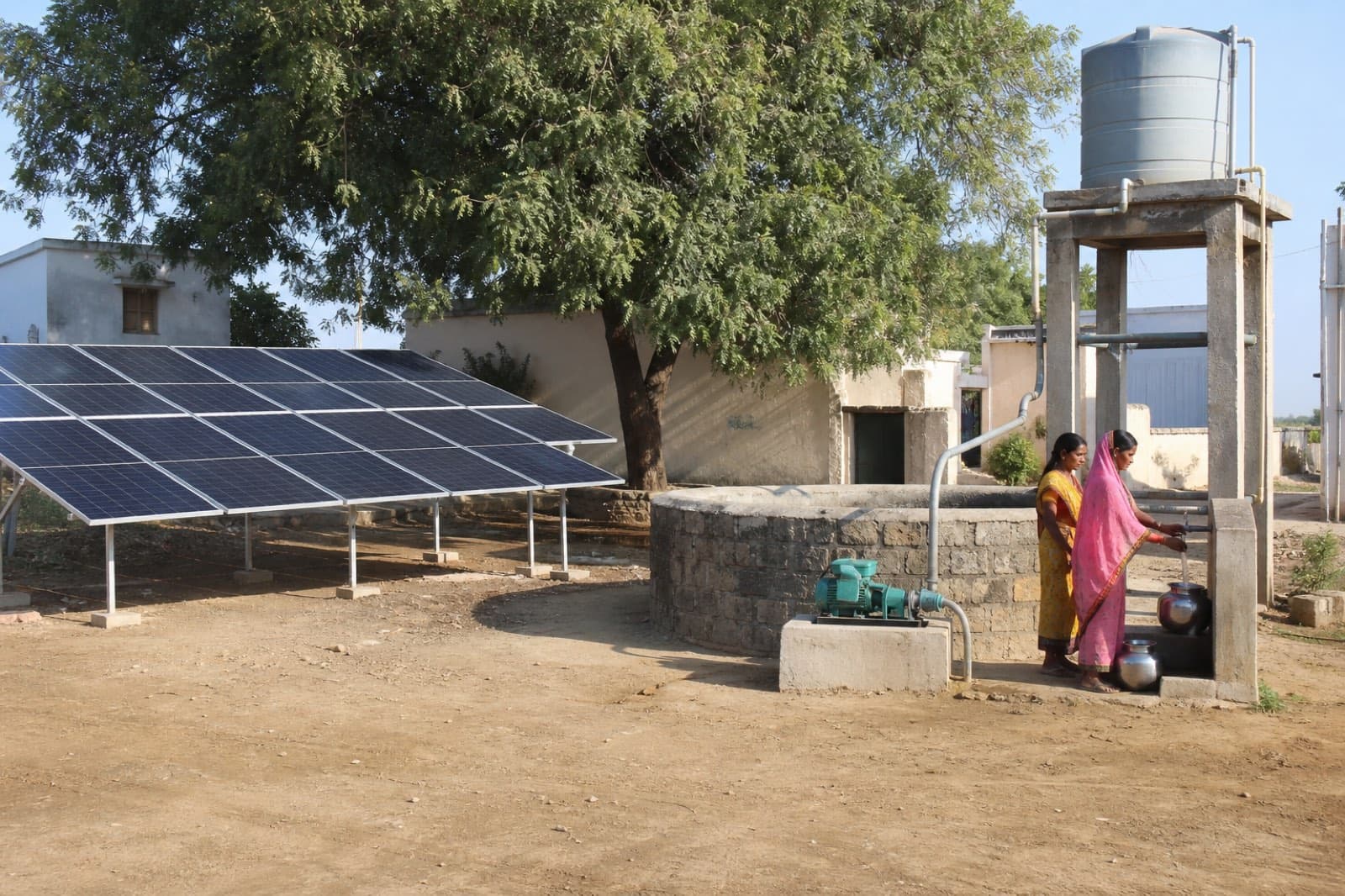

Drinking & Village Water Supply
Provide clean drinking water to rural communities and townships with zero running costs. Optional Tank Full and Source Empty sensors automate filling of overhead tanks, while the Remote Monitoring System lets operators supervise village schemes from a mobile app or web browser.

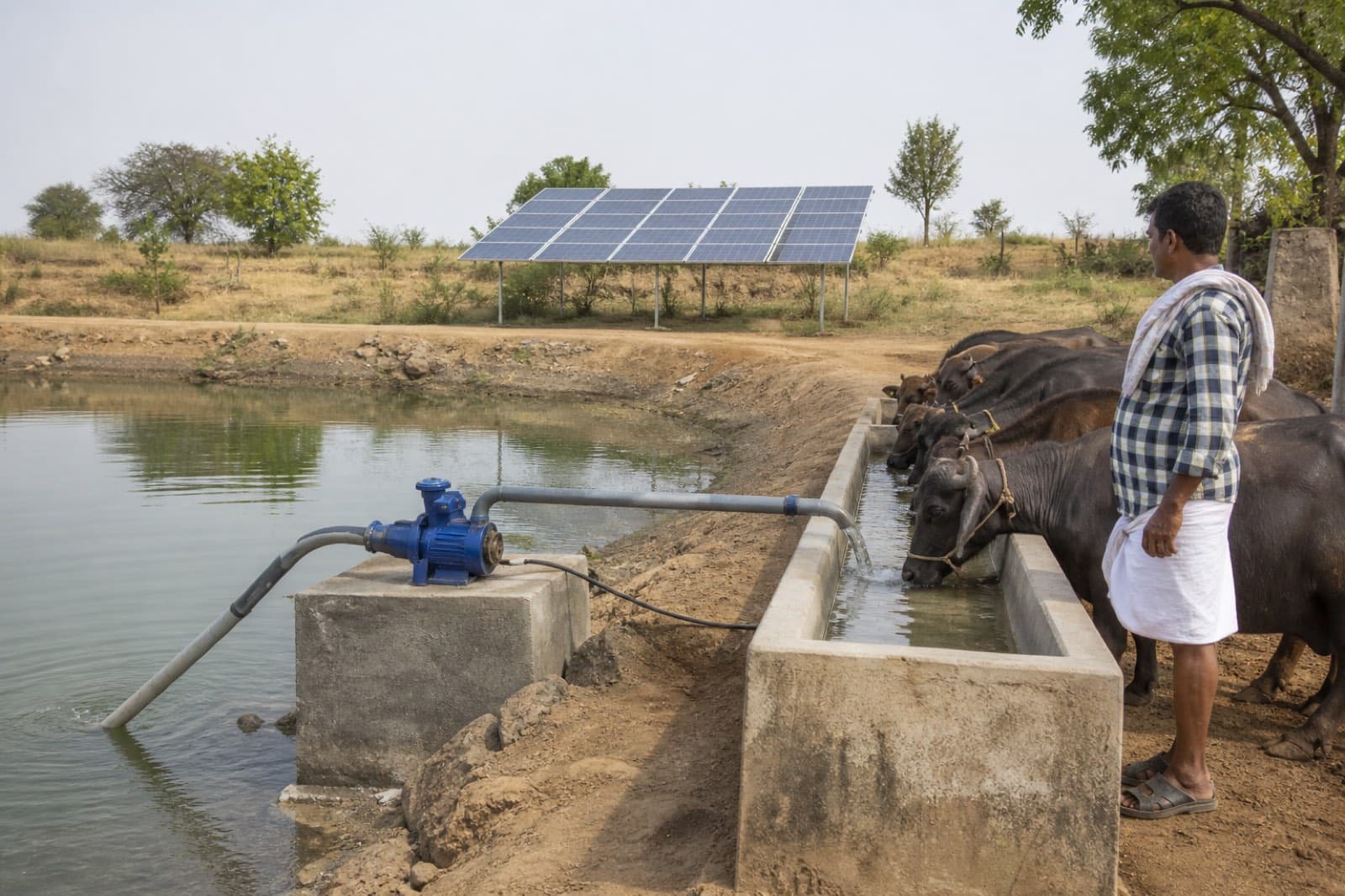

Livestock Watering & Pond Management
Keep troughs topped up and ponds circulating on dairy and livestock farms. The mono block design has no couplings to maintain, the controller protects itself against dry run and voltage faults, and the whole system runs unattended day after day.
Technical Data
Pump & Controller Specifications
Frequently Asked Questions
SuryaNeer is Saatvik's DC surface pump and controller range — a mono block design with the impeller mounted directly on the motor shaft, driven by a high-efficiency BLDC motor using high-energy rare-earth permanent magnets and powered entirely by a solar PV array.
Surface pumps are ideal for open wells, ponds, canals, rivers and storage tanks where the water level is close to ground level. For deep borewells, see Saatvik's SaurJal submersible DC pump range instead.
The controller's integrated MPPT continuously tracks the solar array's maximum power point, so the pump keeps running at reduced flow under clouds and automatically returns to full output when irradiance recovers — no manual intervention required.
Yes. The Remote Monitoring System (RMS) integrated into the controller can switch the pumpset ON/OFF remotely and monitor all parameters from a mobile app or web browser — useful for community water schemes and dispersed farm sites.
The IP65 controller protects against open circuit, accidental short circuit (2 minutes max), reverse polarity, under voltage and dry run, with multifault diagnosis indications and optional Tank Full / Source Empty sensors for automatic start and stop.
